Deployment

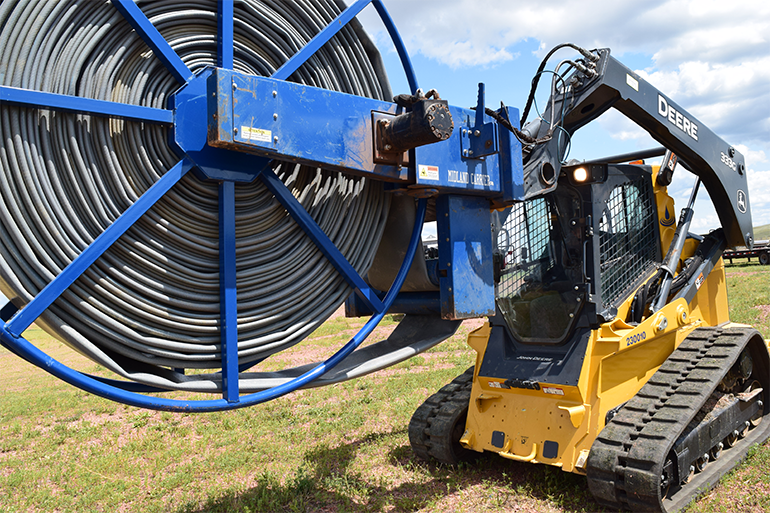

DropWater Solutions exclusively uses the Midland Carrier Model LF 660 Lay Flat hose retrieval and deployment system. It is designed and manufactured to retrieve and deploy 12” lay flat hose.
Equipment
- Midland Carrier hose deployment system
- John Deere 333E Skid steers
- PJ heavy duty 40,000lbs GVRW gooseneck trailers in 47’ and 40’
Detailed job proposals
- Transfer deployment routes
- Pump locations, rate/pressure analysis
- Water source information/capacity
Field Execution
- Detailed job hazard meetings/reports
- Follow in place, customer approved, SOP’s for rig up/down procedures

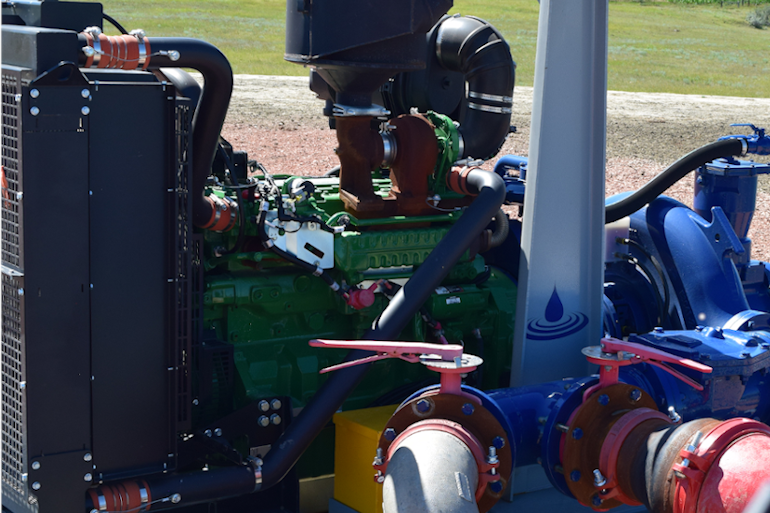

Pumps
DropWater Solutions current fleet includes 325HP pumps and 600HP Redi-Prime Cornell Centrifugal pumps.
600HP JD
- Brand New
- Heavy duty trailer axels, frames, commercial tires and rims
- Extra large built in spill containment
- Can be used with external/day fuel tanks
- Tier 3 Emissions
- Quad 8” Suction End
- Auto Priming System using Diaphragm Pump
- Up to 25’ of Suction Lift
- Not Affected by Altitude like Venturi Systems
- Capable of 100bbls+
600HP Detroit Diesel Series 60
- New Remanufactured Engines
- Heavy duty trailer axels, frames, commercial tires and rims
- Extra large built in spill containment
- Can be used with external/day fuel tanks
- Tier 3 Emissions
- Quad 8” Suction End
- Auto Priming System using Diaphragm Pump
- Up to 25’ of Suction Lift
- Not Affected by Altitude like Venturi Systems
- Capable of 100bbls+
325HP JD
- Brand New
- Heavy duty trailer axels, frames, commercial tires and rims
- Extra large built in spill containment
- Can be used with external/day fuel tanks
- Tier 3 Emissions
- Dual 8” Suction End
- Auto Priming System using Diaphragm Pump
- Up to 25’ of Suction Lift
- Not Affected by Altitude like Venturi Systems
- Capable of 60bbls+

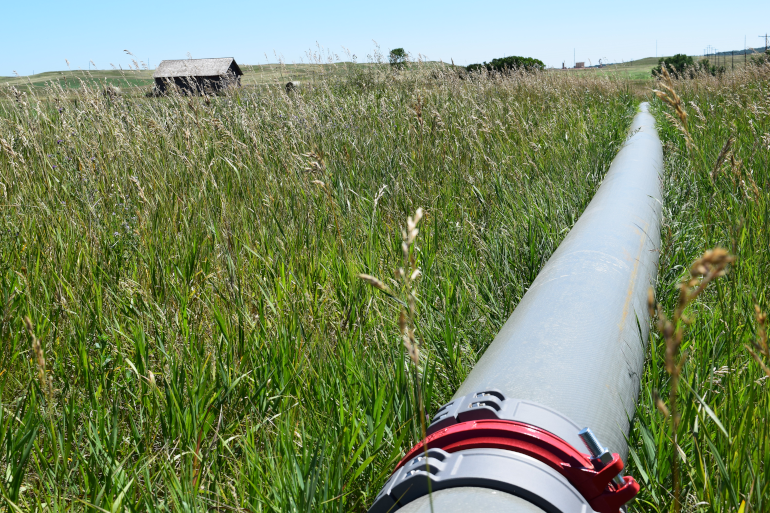

Lay Flat Hose
DropWater Solutions exclusively uses HM FLEX Military Grade Layflat Hose. This TPU Layflat Hose is made from thermoplastic polyether based polyurethane (TPU) extruded through a circular woven jacket made from high tenacity filament polyester yarn.
- HMTPU – 12” Hose
- Working pressure: 200 PSI
- Burst Pressure: 450 PSI
- Safety Pressure Hold Test: 225 PSI
- Average Wall Thickness: .17” TPU Hose can operate in an ambient temperature range from -50 °C ~ 80 °C (-58°F- 176 °F)
